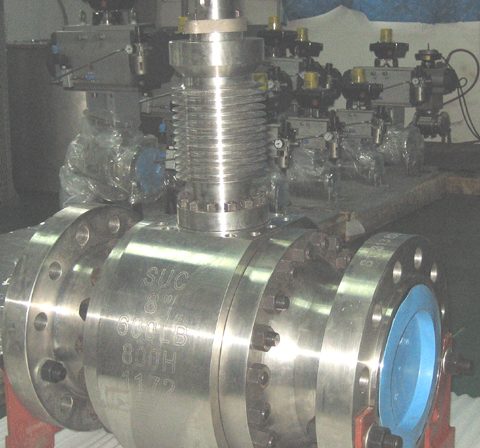

High temperature ball valve
Product Description：
|
Name of Product |
High Temperature Ball Valve |
|
Features |
Full bore and reduced bore |
|
With all the advantages of conventional metal seated ball valve |
|
|
Bi-directional ANSI B16.104 CLASS VI tightness |
|
|
High temperature with heat radiating design ensures long service life of the actuator. |
|
|
Independent actuator connection ensures reliable valve sealing and stable actuator driving. |
|
|
End Connection |
Flanged, butt welded, threaded etc. |
|
Applicable Size |
1/2″~40″, DN15~1000 (Full Bore) |
|
1″~42″, DN25~1050 (Reduced bore) |
|
|
Applicable Temperature |
+300℃~+600℃ |
|
Pressure Rating |
ANSI CLASS150, 300, 600, 900, 1500, 2500 |
|
Body Material |
Cast and forged carbon steel, stainless steel and alloy steel |
|
Trim Material |
Hardened stainless steel, alloy steel etc. |
|
Stem Material |
Stainless steel, alloy steel etc. |
|
Seat Material |
Hardened stainless steel, alloy steel etc. |
|
Applicable Industries |
Oil, chemical, petrochemical, metallurgic, light industry, refining, power, food, medicine, papermaking and mining etc. |
|
Applicable Media |
High temperature tri-phase of gaseous, liquid and solid flows and two-phase flows |
