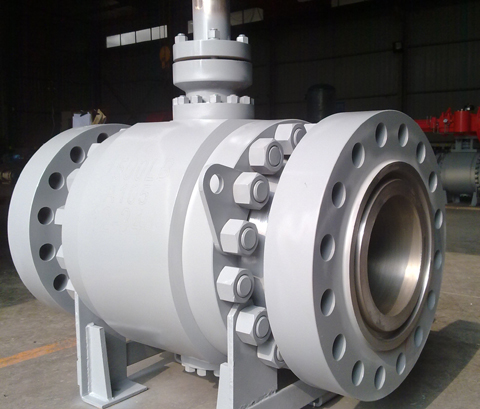

Hard seal ball valve
Product Description：
|
Name of Product |
Metal Seated Ball Valve |
|
Features |
Structures: floating ball, trunnion mounted ball and single-seat bi-directional seal powder service structure |
|
Bi-directional seal design |
|
|
Blow-out proof stem |
|
|
Leakage rate to ANSI B16.104 CLASS VI and zero leakage |
|
|
End Connection |
Flanged, butt welded, socket welded and threaded etc. |
|
Applicable Size |
1/2″~20″, DN15~500 (Full Bore), 1″~24″, DN25~600 (Reduced bore) |
|
Applicable Temperature |
-196℃~+600℃ |
|
Pressure Rating |
ANSI CLASS150, 300, 600, 900, 1500, 2500 |
|
Body Material |
Carbon steel, stainless steel, duplex stainless steel, Hastelloy, titanium etc. |
|
Trim Material |
Stainless steel + hard alloy(e.g. WC, CrC and Ni-based powder etc.) |
|
Stem Material |
Precipitated duplex high strength stainless steel, Hastelloy-C etc. |
|
Seat Material |
Stainless steel + hard alloy (e.g. Ni-based materials and Colmonoy etc.) |
|
Applicable Industries |
Oil, chemical, petrochemical, metallurgic, light industry, refining, power, food, medicine, papermaking and mining etc. |
|
Applicable Media |
Particles containing, powder and high viscosity media |
