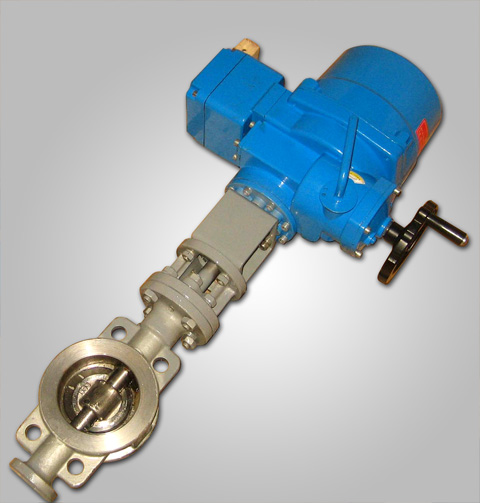

Electric adjustment butterfly valve
Product Description：
|
Name of Product |
Electric Regulating Butterfly Valve |
|
Features |
Four types: center line type, double-eccentric center type, three-eccentric center type and throttle type |
|
All advantages of the butterfly valve |
|
|
Flow characteristics tend to be linear and the regulation performance is excellent. |
|
|
The combination of stcoch yoke pneumatic actuator (electric actuator) with the ball valve ensures high precision of flow regulation of the valve. |
|
|
Valve position control of 0~20mA input control signals can be realized. |
|
|
Control of opening position, optional intermediate position and closing position can be realized. |
|
|
Connection type |
Flanged connection and butt clamped connection etc. |
|
Dimension (mm) |
1/2″~64″DN15-1600 |
|
Applicable temperature (℃) |
Center line-type butterfly valve and double-eccentric center butterfly valve: -196~+200℃ Three-eccentric center butterfly valve and throttle butterfly valve: -196~+600℃ |
|
Maximum pressure (MPa) |
ANSI CLASS150, 300 |
|
Body material |
Cast steels such as carbon steel, stainless steel and alloy steel |
|
Spool material |
Stainless steel, alloy steel etc. |
|
Stem material |
Stainless steel, alloy steel etc. |
|
Seat material |
Soft seal type and metal seal type |
|
Scope of Application |
It is applicable to petroleum, chemical, petrochemical, metallurgic and light industries, oil refining, power plant, food, medicine, papermaking mineral industry etc. |
|
Applicable medium |
Fresh water, seawater, air, gas, coal gas, steam, food, drug, chemical agent, various oils, acids, alkalis, salts and organic materials |
