Fixed ball valve
Product Description：
|
Name of Product |

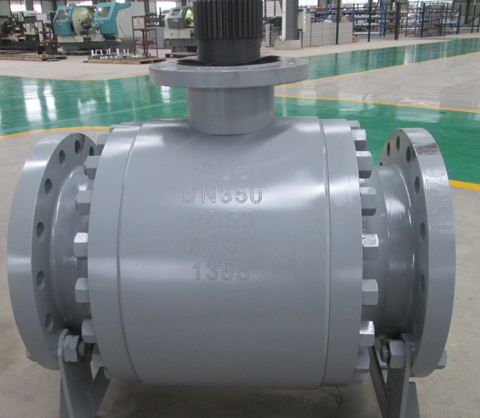

Cast Steel/ Forged Steel Trunnion Mounted Ball Valve |
|
Features |
Blow-out proof stem |
|
Double block and bleed |
|
|
Fire safe and anti-static device |
|
|
Full bore and reduced bore |
|
|
Cavity pressure self-relief |
|
|
Emergency sealant injection |
|
|
Split body and fully welded body |
|
|
In compliance with API 6D norm |
|
|
End Connection |
Flanged, butt welded etc. |
|
Applicable Size |
2″~40″, DN50~1000 (Full Bore), 3″~42″, DN80~1050 (Reduced bore) |
|
Applicable Temperature |
-196℃~+600℃ |
|
Pressure Rating |
ANSI CLASS150, 300, 600, 900, 1500, 2500 |
|
Body Material |
ASTM: A105, LF2, F304(L), F316(L), F51, F6a, Hc, HB, 20Alloy, WCB, CF8, CF8M, CF3, CF3M etc. |
|
Trim Material |
A105+ENP, LF2+ENP, F304(L), F316(L), F51, F6a, Hc, HB, Alloy20 |
|
Stem Material |
A105+ENP, LF2+ENP, F304(L), F316(L), F51, F6a, Hc, HB, Alloy20 |
|
Seat Material |
PTFE, R.PTFE, PEEK, NYLON, PPL |
|
Applicable Industries |
Oil, chemical, petrochemical, metallurgic, light industry, refining, power, food, medicine, papermaking and mining etc. |
|
Applicable Media |
Fresh water, seawater, air, gas, coal gas, steam, food, drug, chemical agent, various oils, acids, alkalis, salts and organic materials |
