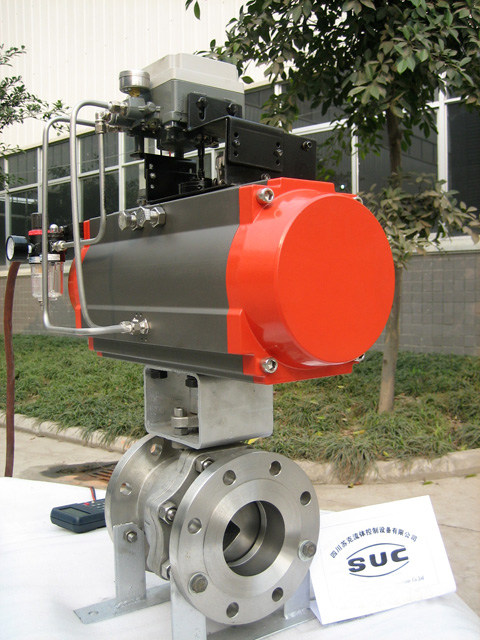

V-type regulating ball valve
Product Description：
|
Name of Product |
V-port Control Ball Valve |
|
Features |
Broad regulating ratio: 250:1 |
|
Regulating characteristics: approximately equal percentage |
|
|
Excellent flow rate characteristics |
|
|
High flow coefficient |
|
|
ANSI B16.104 Class V&VI leakage rate, with functions of on-off valve. |
|
|
Unique V-sphere and small V-port minimize the dead zone of regulating. |
|
|
End Connection |
Flanged & wafer |
|
Applicable Size |
1-1/2″~20″, DN40~500 (Full Bore) |
|
Applicable Temperature |
-196℃~+500℃ |
|
Pressure Rating |
ANSI CLASS150, 300, 600 |
|
Body Material |
Carbon steel or stainless steel |
|
Trim Material |
Stainless steel + hard alloy(e.g. WC, CrC and Ni-based material etc.) |
|
Stem Material |
Precipitated duplex stainless steel |
|
Seat Material |
Stainless steel + hard alloy(e.g. Ni-based material, Colmonoy etc. ) |
|
Applicable Industries |
Oil, chemical, petrochemical, metallurgic, light industry, refining, power, food, medicine, papermaking and mining etc. |
|
Applicable Media |
Particles containing, powder and high viscosity media |
